Flight Core PWM output cable and Break Out Board

$14.99
| /
Selected sku: MDK-M0022-1-01
description

Technical Details

PWM output cable and Break Out Board

Connector: 10 Position JST GH, Vertical, BM10B-GHS-TBT

Notes: 5V is for Ref Only

Pin # Signal Name
1 5VDC (other pins are 3.3V, input or output if supplied at another pin)
2 PWM_CH1
3 PWM_CH2
4 PWM_CH3
5 PWM_CH4
6 PWM_CH5
7 PWM_CH6
8 PWM_CH7
9 PWM_CH8
10 GND



ModalAI Part Numbers

 MPN Description
MDK-M0022-1-01

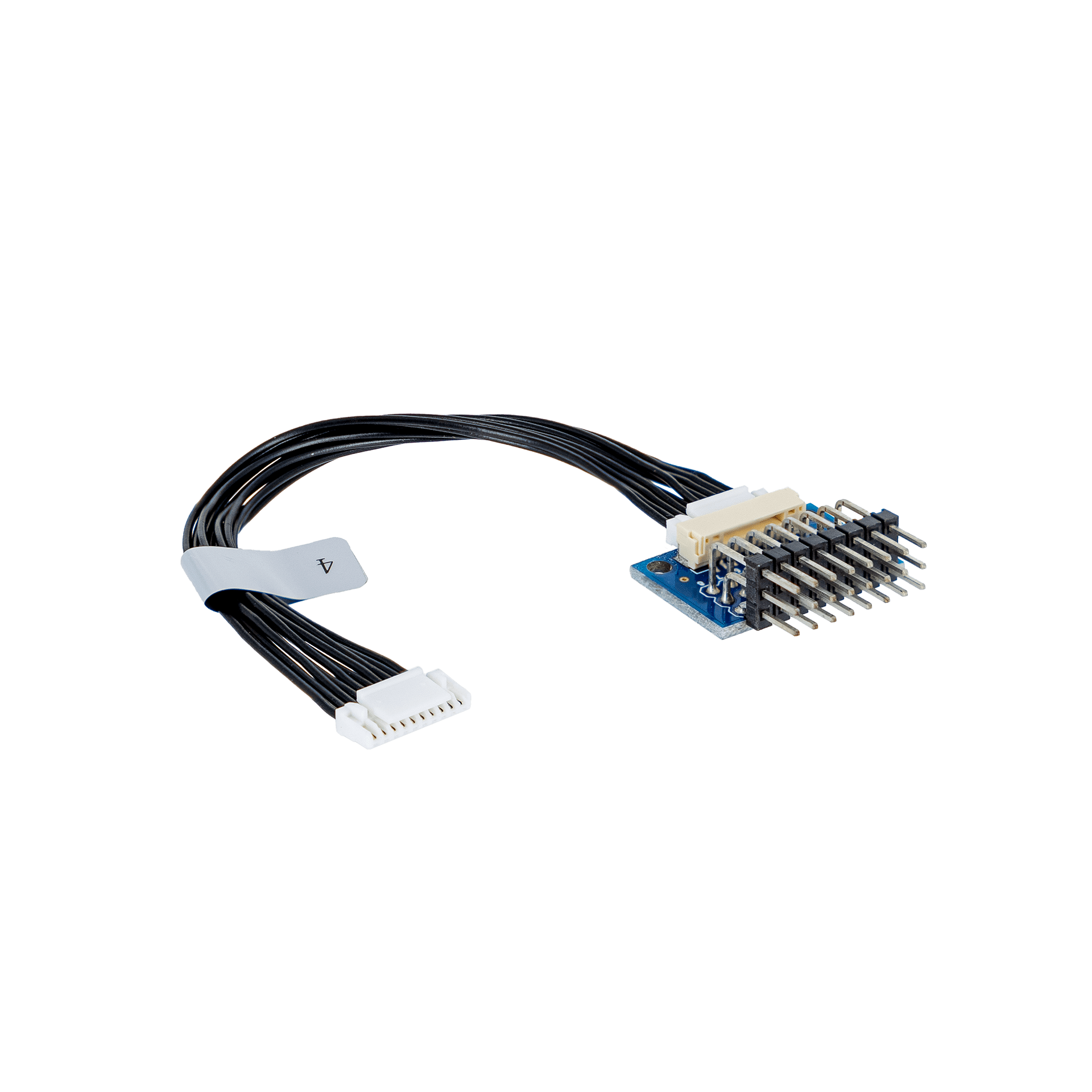

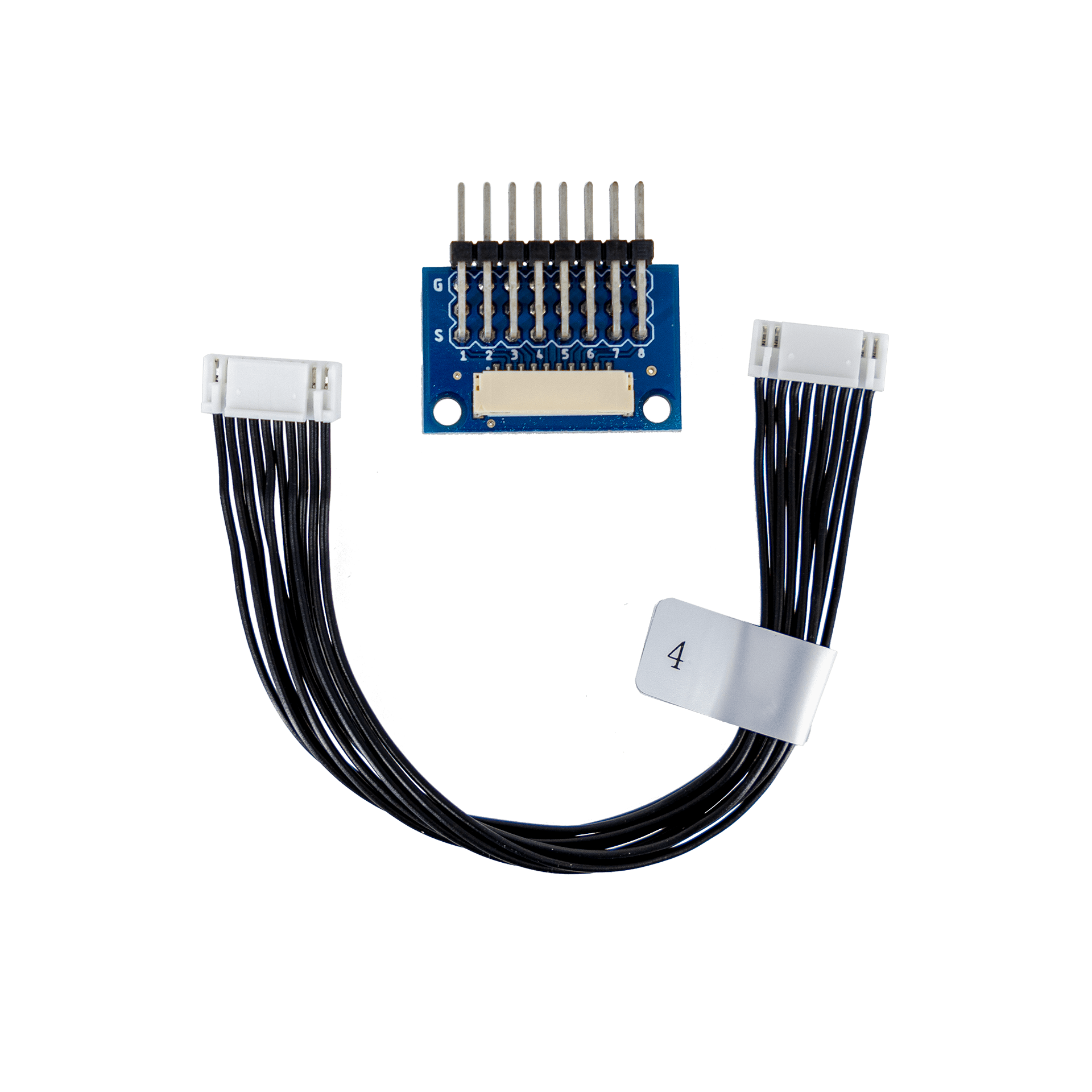

Flight Core PWM Breakout Kit:

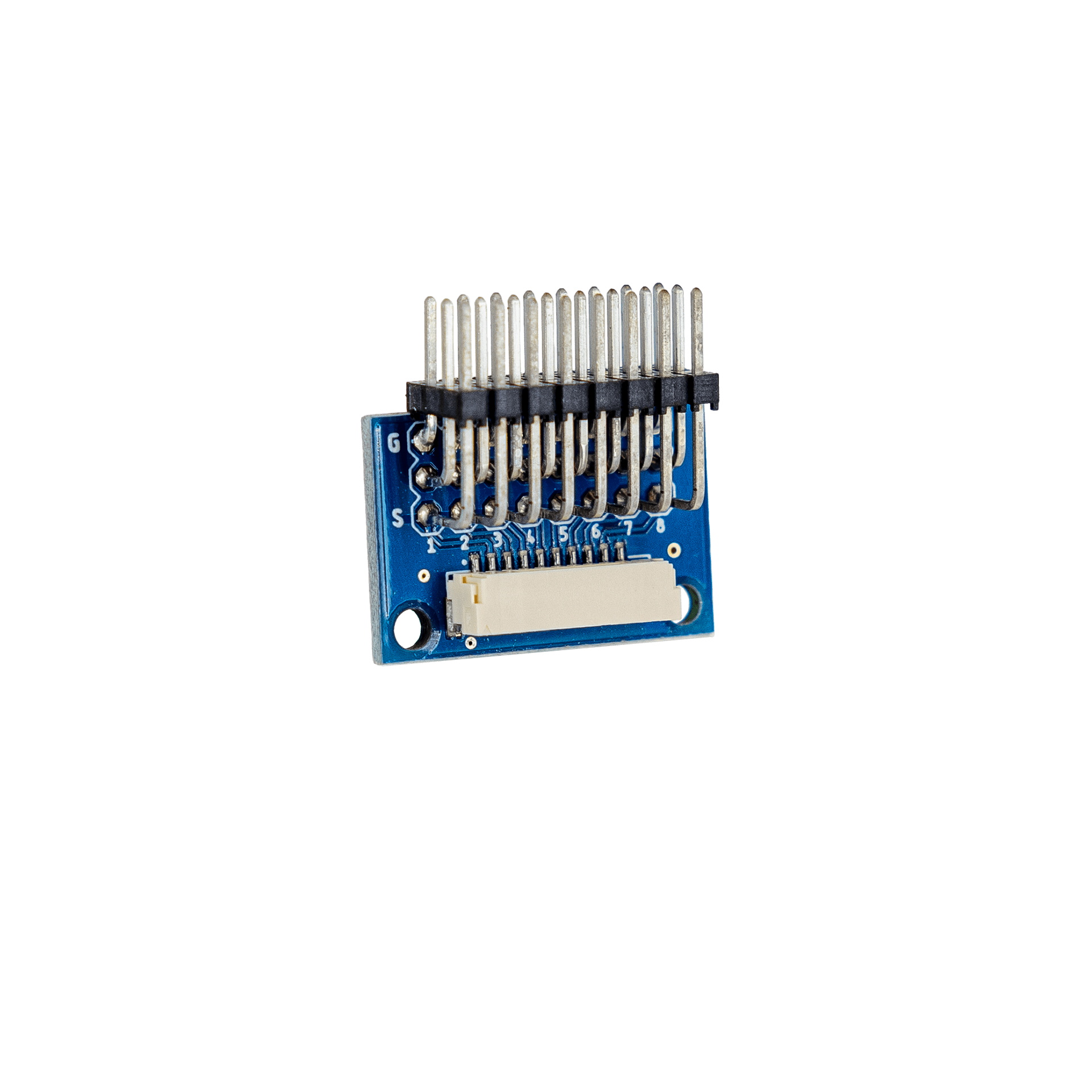

  • MCCA-M0022-1 : PWM Breakout Board
  • MCBL-00004-1: Flight Core, PWM Output Cable
